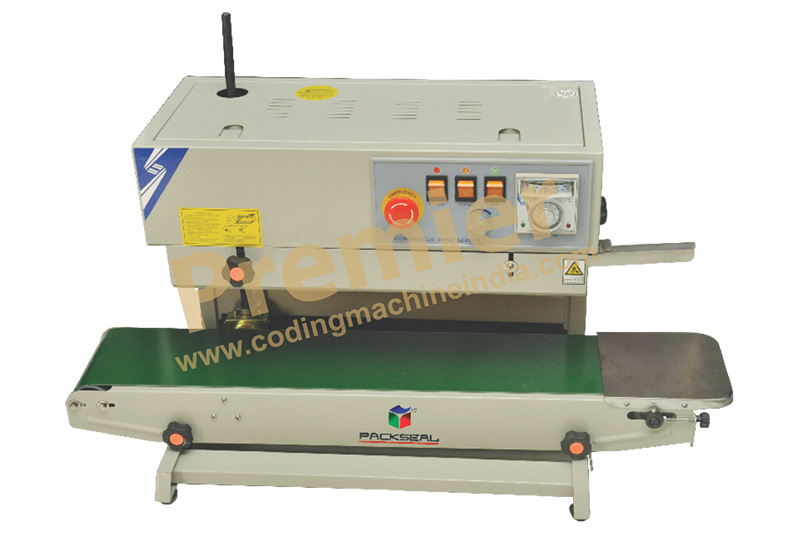

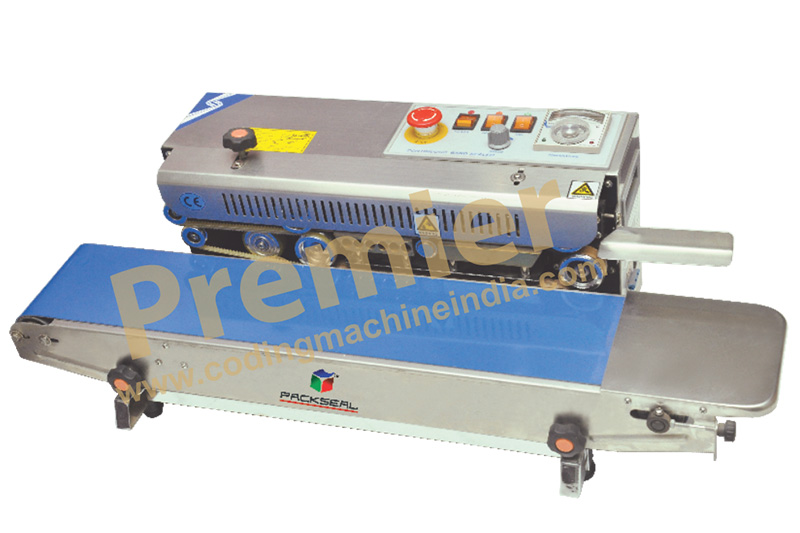

Fr-770 Series Continuous Band Sealer Can Seal Plastic Films Made From Various Materials Continuously. Embossing Printing Device And Counting Device Can Be Equipped. There Are Three Models, Including Horizontal Model (Fr-770i), Vertical Model (Fr-770ii) And Console Model (Fr-770iii)
1. Constant Temperature Control And Temperature Is Adjustable.
2. Stepless Speed Regulation
Fr-770 Series Continuous Band Sealer Is Suitable For Sealing Small Package.
| Fr-770i | Fr-770ii | Fr-770iii | |
| Voltage (V/Hz) | Ac 220/50 110/60 | ||
| Power (W) | 50 | ||
| Sealing Power (W) | 300×2 | ||
| Sealing Speed (M/Min) | 0-12 (0-16) | ||
| Sealing Width (Mm) | 8 | ||
| Temperature Range (?) | 0-300 | ||
| Printing Type | Steel Wheel Embossing Printing (Optional) | ||
| Distance From Sealing Center To Conveyor Table (Mm) |
10-40 | 150-270 | 10-40 |
| Conveyor Size (L×W) (Mm) | 840×153 | ||
| Max. Conveyor Loading For Single Package (Kg) | ?1 | ||
| Overall Conveyor Loading (Kg) | ?3 | ||
| External Dimensions (L×W×H) (Mm) | 840×380×270 | 840×380×550 | 840×550×800 |
| Net Weight (Kg) | 32 | 37 | 40 |
